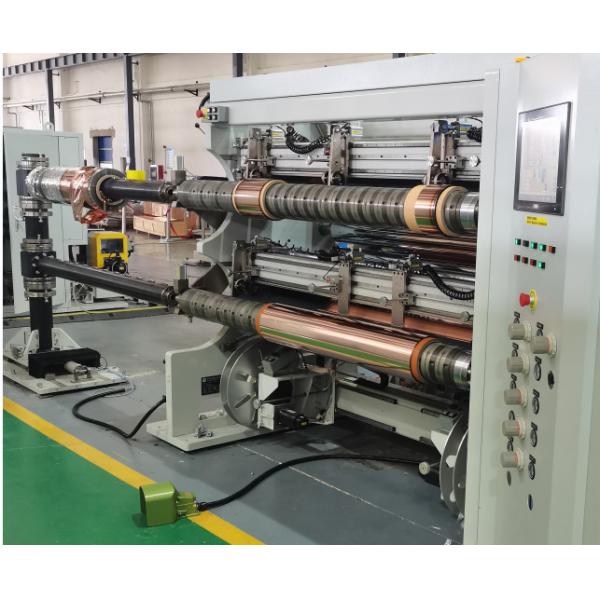

DSP Series Slitting Rewinder Machine
The high-performance Slitting Rewinder Machine is professionally
used in composite current collector materials such as PET+Cu and
OPP+Cu etc.
A. Unwinding Device
B. Slitting Device
Type: Circular knife slitting method, Upper circular cutter shaft
is independently driven with adjustable speed
C. Rewinding Device
Type, Slip Shaft, Tension control, Touch Pressure, Remove static electricity, Meter
accuracy
D. Transmission Control
Drive, Flattening Roller, Touch Roller, Guiding Roller
E. Electrical Control
1) Main electrical control box
2) Operation screen
3) The main components of the equipment are all from
internationally renowned brands such as Beckhoff, LS, SMC, SKF,
Muller, Phoenix, etc.
A. Power Supply
1) AC380V, 50Hz, 3Phase
2) Connection efficiency: Approx. 20KVA
3) Average consumption: Approx. 15KVA
4) Voltage variation range: +/- 5%
B. Compressed air
1) Oil-free and water-free clean compressed air
2) Pressure (into the device interface)
C. Device positioning
After the equipment is adjusted to be level, fix it with a pressure
plate and expansion bolts.
D. Environmental requirements
1)Temperature: 25+/-10℃
2)Humidity: Max. 75% at 20℃, Max. 50% at 30℃ (No condensation)
| Substrate | PET+Cu, OPP+Cu |
| Substrate Width | 1000mm~1650mm |
| Mechanical Speed | Max. 150m / min |
| Slitting Width | 250mm-1650mm |
| Substrate Thickness | 3μm-12μm |
| Rewind diameter | Max. 450mm |
| PLC | Germany Beckhoff |
| Electricity | 3 phase * 380 volt *50Hz
|
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well
known both at home and abroad.
OUR WORKSHOP
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q: Where is your factory located? Can I visit it before I place an
order?
A: Of course, warmly welcome to visit our factory. Our factory is
located in Hefei, Anhui, China.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as
Europe, USA, Japan, Korea, India etc.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for
all machinery.
The response is available within 12 hours while the solution for
the troubleshooting is provided within 48 hours.
Q: Payment Terms
A: TT 30% in advance, 70% before shipment.
Q: Machine installation
A: We could assign the technician to the place for the on-site
installation if requested by the purchaser.
